6. Tray Icon

The tray icon in the Windows taskbar or other operating system toolbars is visible if supported by the operating system and one of the options Minimize to System Tray or Start minimized to System Tray is enabled.

It allows to run Little Navconnect without main window.

The following actions are available on the system tray icon:

  • Left mouse click: Toggles the visibility of the main window.

  • Right mouse click: Shows the context menu.

  • Tooltip: Hovering the mouse above the tray icon shows a small tooltip window with the last messages from the main window.

_images/traymenu.jpg

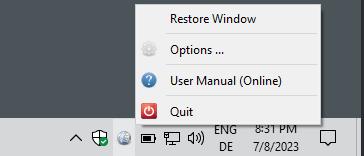

Little Navconnect taskbar tray icon on Windows with the context menu after right click. The main window is hidden.

_images/traytooltip.jpg

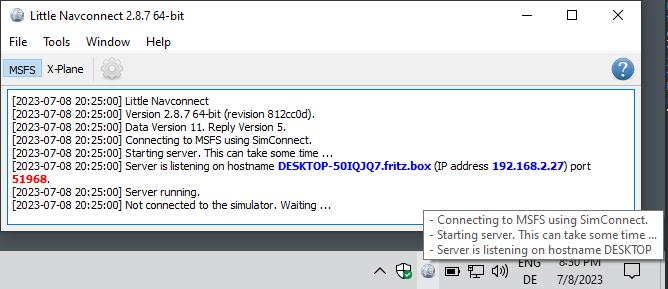

Little Navconnect tray icon on Windows taskbar with tooltip showing log messages and the main window visible.

6.1. Context Menu

6.1.1. Restore Window

Opens the main window again. This is the same as a single click on the icon.

6.1.2. Settings Options

Opens the options dialog which allows to adjust connection settings.

See chapter Options for more information.

6.1.3. Help User Manual (Online)

Shows the online help in the default web browser.

6.1.4. Quit Quit

Exits the application. Will ask for confirmation if there are still clients connected.
