67. Coordinate Formats

This chapter briefly describes the recognized coordinate formats in flight plan position dialogs and userpoint dialogs.

The input field shows a message below which indicates if the coordinates were recognized and shows the translated coordinates in the preset format as selected in dialog Options on page Units. A red message is shown in case of error.

Check the displayed translated coordinates to verify that your input was parsed correctly.

_images/edit_flightplan_waypoint_tooltip.jpg

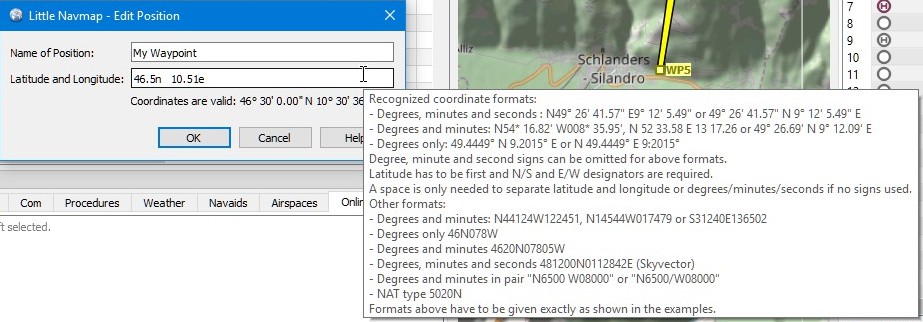

Editing an user defined flight plan position. Tooltip gives a quick help on coordinate formats.

67.1. General

  • Latitude has to be first and longitude second.

  • N/S and E/W designators are required except for the signed formats. Case does not matter.

  • Degree, minute and second signs can be omitted if numbers are separated by spaces.

  • A space is only required to separate latitude and longitude or degrees/minutes/seconds if no unit signs are used.

  • Decimal separator can be period (English) or the locale dependent separator like e.g. comma (German).

  • ARINC 424 Code Convention full degree waypoint formats like 57N30, 5730E or 57S30 can be read.

_images/arinc_waypoint_coordinates.jpg

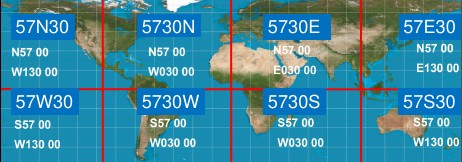

Full degree coordinate conventions, examples and respective quadrants.

All dialogs show the read coordinates below the input field in the curretly configured coordinate format. See Units for more information.

Tip

You can directly paste coordinates from the Wikipedia like 40°41′21″N 74°2′40″W into the fields.

67.2. Signed Decimal Formats

For the coordinate formats Latitude and Longitude with sign and Longitude and Latitude with sign:

  • Latitude: Negative is south and positive is north.

  • Longitude: Negative is west and positive is east values.

Selecting these display formats will also enable input of signed decimal values.

Comma separated values like 50,07477,8,54053 (comma as German decimal separator) or 50.07477,8.54053 are valid. Spaces before and after the comma are allowed.

Note

The reading order for coordinates (Latitude and Longitude versus Longitude and Latitude) will also change depending on the selected format if entering signed numbers.

The reading order will not change if the input field uses N, S, E and W designators.

67.3. Other Formats

These have to be given exactly as shown in the examples.

  • Degrees and minutes: N44124W122451, N14544W017479 or S31240E136502

  • Degrees only 46N078W

  • Degrees and minutes 4620N07805W

  • Degrees, minutes and seconds 481200N0112842E (SkyVector)

  • Degrees and minutes in pair N6500 W08000 or N6500/W08000

  • NAT type 5020N

67.4. Examples

  • Degrees, minutes and seconds: N49° 26' 41.57" E9° 12' 5.49" or 49° 26' 41.57" N 9° 12' 5.49" E

  • Degrees and decimal minutes: N54* 16.82' W008* 35.95', N 52 33.58 E 13 17.26 or 49° 26.69' N 9° 12.09' E

  • Decimal degrees only: 49.4449° N 9.2015° E or N 49.4449° E 9:2015°

  • ARINC 424 Code Convention full degree waypoint format: 57N30, 5730E or 57S30
