61. Printing

61.1. Print Map

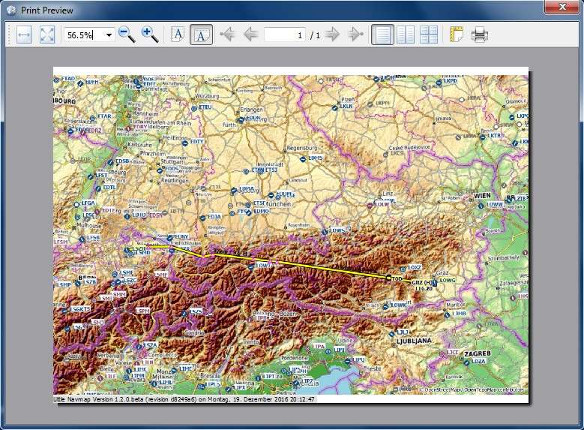

Opens the print preview dialog allowing the current map view to be printed.

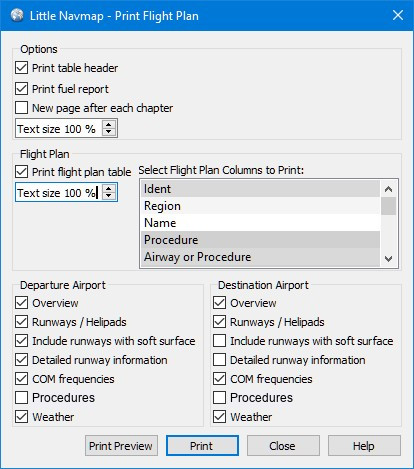

Print the current flight plan together with departure and destination airport information.

Print Table Header: Adds a header showing departure, destination and other information like the label on top of the tab Plan in the dock window Flight Planning.
Print Fuel Report: Print the fuel calculation report from the tab Aircraft in the dock window Flight Planning.
New page after each chapter: Add a page feed after header, flight plan, fuel report and airport information.
Text Size: Allows to increase or decrease the size of all texts except the flight plan table.

Print flight plan table: Adds the flight plan to the print.
Text Size: Increase or decrease the size of the flight plan table text.
Select Flight Plan Columns to Print: Click on the names to include or exclude flight plan columns. Note that the columns are printed in the same order as shown in the Flight Plan Table.

Overview: Print the airport overview as show in the Information dock window on tab Airport.
Runways / Helipads: Print runway and helipad information.
Include runways with soft surface: Include runways with soft surfaces like grass, gravel and others.
Detailed runway information: Include detailed information for the runway ends like approach lighting, VASI types, ILS information and more.
COM frequencies: Include communication frequencies like tower, ATIS, UNICOM and others.
Procedures: Print procedure information as shown on the tab Procedures in the Information dock window.
Weather: Print the decoded weather for all enabled sources as shown on the tab Weather in the Information dock window.
