44. Flight Plan Route Description

This dialog allows you to create a flight plan from a route description string consisting of airport and navaid idents as generated or provided by various online services.

The route description allows you to share a complete flight plan including cruise altitude, speed and all procedures using one line of text.

Click Load from Flight Plan to generate the route string from the currently loaded flight plan. This will append and read the string on the top of the list.

The top of the dialog holds the route description input field, while the center half shows any messages, warnings or errors that occur during reading. The string is read automatically while entering it into the input field. The lower part provides a quick help.

44.1. Input Field

The upper input field is split into two sections. The top most can cover several lines and is is shown using bold text. This is the active section which is read and the results are shown in the output.

The lower text can be seen as a kind of a notepad, is displayed in gray color and is ignored for reading. The two sections are separated by an empty line. You can copy and paste lines between the two sections using the context menu or the keyboard shortcuts copy Ctrl+C, cut Ctrl+X and paste Ctrl+V.

You can use Ctrl+Return to create a flight plan from the top bold description string. This is the same as clicking the button Create Flight Plan (Buttons).

All texts are saved on exit.

44.2. Reading

Little Navmap tries to use as much of the route as possible even if parts of the flight plan like waypoints or airways cannot be found or names are ambiguous. You will see warnings in the center output field if that is the case.

If a route covers a long distance and contains a waypoint name which is not unique, a wrong waypoint might be added to the flight plan. Correct or remove this waypoint manually in the Flight Plan Table using the Context Menu Flight Plan.

Many waypoints and airways will not be found if route descriptions from the latest AIRAC sources are used together with the old FSX, P3D or MSFS stock data. It is recommended to use a navigation data update for the stock scenery or Little Navmap when reading route descriptions from online sources like RouteFinder, Online Flight Planner, SimBrief or SkyVector.

If a navdata update is not an option, pick the online service’s AIRAC cycle that is closest to the cycle the navigation data of your flight simulator is based on.

Note that even flight plans calculated in Little Navmap cannot be converted back exactly in some cases. This happens due to navaid ambiguities like NDB and VOR stations having the same names or errors in the source data.

The cruise altitude is used to create the flight plan, if given. Otherwise the cruise altitude is automatically determined by the flight plan type (IFR or VFR) and the minimum altitude of the used airway segments.

The cruise speed is ignored when reading and produces a warning if found since it is taken from the aircraft performance. Generating a description from a present flight plan uses the cruise speed from the loaded aircraft performance file ( Aircraft Performance) and the cruise altitude as set in Cruise altitude.

Note that you can modify the flight plan in parallel on the map or in the flight plan table. Move the Flight Plan Route Description aside to do so. You have to transfer the plan to the dialog by clicking Load from Flight Plan after doing changes in the background. Click Create Flight Plan before doing changes on the map or in the flight plan table.

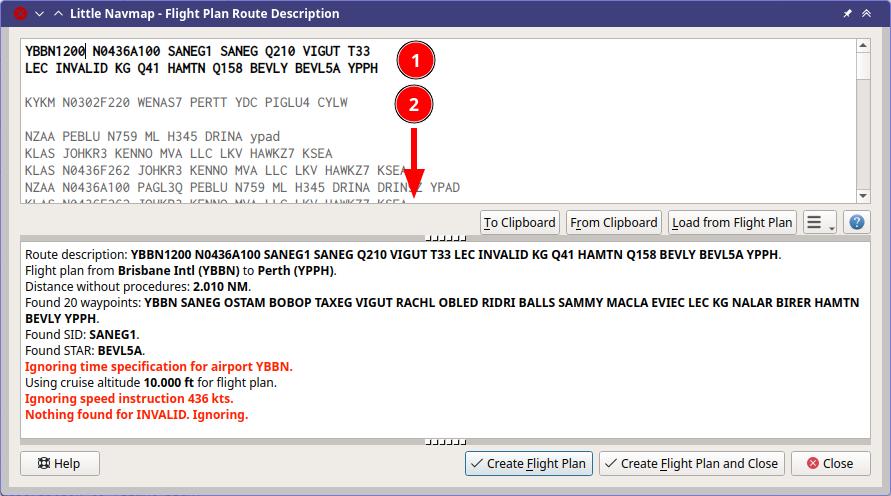

_images/routedescr.jpg — A route description (1) (bold top section) that was read successfully with a few warnings about ignored elements. The waypoint `INVALID` could not be found. Altitude, SID and STAR were recognized. More inactive route descriptions are stored below (2). *Click image to enlarge.*

44.3. Buttons

Note that some buttons are now shown when opening this dialog from Open Flight Plan from SimBrief.

Undo and Redo : Undo changes in the text input field. This does not affect the flight plan table.
To Clipboard: Copy the current active description from the input field as plain text to the clipboard.
From Clipboard: Insert text from clipboard into the top of the input field making it the active route description. The inserted text is converted to upper case and all invalid characters are removed from the text before reading.
Load from Flight Plan: Create the route string from the current flight plan and inserts it into the top of the input field making it the active route description. Use this after changing settings with drop down menu buttons or after modifying the flight plan on the map or in the flight plan table.
IFR or VFR: The flight plan type used when creating a plan. This setting will be taken over into the field Flight Plan Type in the tab Flight Plan when clicking one of the Create Flight Plan ... buttons.
Menu Button : Write denotes flight plan to description and Read denotes description to flight plan. You can tear off the drop down menu from the button by clicking on the dashed line on top of it. Note that the menus starting with Write are now shown when opening this dialog from Open Flight Plan from SimBrief.
- Write runway and approach instructions: This adds departure and arrival runways separated by a / to the start and destination airports if given. An approach procedure including transition is added instead if given.
- Write cruise speed and altitude instruction: Add cruise altitude from flight plan and speed as set in the aircraft performance.
- Write DCT (direct) instructions: Add DCT for any direct waypoint connections in the flight plan.
- Write Alternates: Appends all alternate airports to the end of the description.
- Write SID and STAR: Add SID and STAR names, if any are used for departure or arrival.
- Write generic SID and STAR: Add the generic SID and STAR keywords if no real SID and/or STAR were selected.
- Write no SID and STAR: Do not include any SID and STAR information at all.
- Write STAR and transition reversed: Write TRANS.STAR instead of STAR.TRANS if selected.
- Write SID/STAR and transition space separated: Write SID TRANS and STAR TRANS instead of SID.TRANS and STAR.TRANS if selected.
- Read trailing Airports as Alternates:
  - Enabled: A list of airports at the end of the description will be read as alternate airports except the first in the chain of consecutive airports which will be used as destination. Any airport with a valid STAR in the chain will be treated as destination too.
  - Disabled: Reading simply creates a flight plan with the airports as intermediate waypoints and the last one as destination. See example below.
- Advanced: Sub-menu with less often use options.
  - Write waypoints instead of Airways: Does not include airway names in the string but expands it and inserts the waypoints names only.
  - Write departure and destination airport: Note that disabling this option will result in an invalid route description which cannot be read back into a flight plan.
  - Read: Match coordinates to waypoints: Tries to matches coordinates to nearby waypoints. EICK 5000N00760W EDDF will result in EICK GAPLI EDDF if this is enabled, for example.
  - Read first and last item as navaid: Does not require airports as start and destination and will resolve the first and last item to navaids. Useful for reading snippets.
Create Flight Plan and Close: Closes the dialog and creates a new flight plan for the read route description. Replaces the current flight plan. You can undo this change in the Flight Plan Table.
Create Flight Plan: As above but keeps the dialog window open.

Tip

In any case you can use Undo and Redo to change the input field (right click context menu in the input field) as well as the flight plan table ( Undo and Redo).

44.4. Airport idents

ICAO, FAA, IATA and local codes are shown and the internal ident is avoided for display if possible. Note that IATA codes are only read for departure and destination since they can be easily confused with navaids en-route.

X-Plane internal codes like XPA000B are recognized despite being avoided for display.

44.5. Format

The route description has to follow the format rules below:

FROM[ETD][/DEPARTRWY] [SPEEDALT] [SIDTRANS] [ENROUTE] [STARTRANS] TO[ETA][/APPROACH] [ALTERNATES]

All elements in square brackets [] are optional.

FROM: Required 3 or 4 letter idents for departure airport. Departure time ETD is ignored. Departure time ETD or arrival time ETA is ignored. Examples: KEAT, CYPU, S16.
DEPARTRWY is an optional departure runway separated by a /. Example EDDF/07R. Must match available runways in SID if used.
SPEEDALT: An optional entry that contains the cruise speed and altitude. See below for a details. Speed is ignored when reading since it is part of the aircraft performance profile.
SIDTRANS: Either the word SID or real SID, STAR and transition names where the optional transition is separated by a dot . or a space `` . The generic keyword ``SID creates a direct connection to the en-route part. Examples: RDHK2.HOLLE, OHIO3 LFK, RDHK2, OHIO3.
ENROUTE: This is a list of either WAYPOINT or an AIRWAYWAYPOINT forming the actual flight plan. The first entry has to be an airport, waypoint, VOR or NDB.
- WAYPOINT: A waypoint, VOR, NDB, airport or user defined coordinates. See below for a details about coordinates. A waypoint can be prefixed with DCT to indicate a direct connection not using an airway. Waypoints can be suffixed with an optional /SPEEDALT value although this is ignored. Examples: TAU, BOMBI, AST, CL, EDDF.
- AIRWAYWAYPOINT: Airway or oceanic track plus end waypoint of the airway/track separated by a space. Examples: V495 CONDI, V338 YVR, V330 TRENA, NATF ELSIR or F ELSIR. Note that the North Atlantic Track notation can be used to identify tracks. Example: NATA is interpreted as NAT track A. Other oceanic tracks are simply identified by their letter or number. See Tracks for more information.
STARTRANS is either the word STAR or a read STAR and an optional transition which can be given as STAR.TRANS, STAR TRANS, TRANS.STAR or TRANS STAR. The generic keyword STAR creates a direct connection from the en-route part to the airport.
TO: Required 3 or 4 letter ident for the destination airport. The arrival time ETA is ignored.
APPROACH this is either the destination runway such as EDDH/08L or an optional transition and approach separated by .. The approach/runway field is optional.For example, CYLW/HUMEK.I16-Z with a transition or CYLW/R16-Z without a transition. Note that the approach must be entered in ARINC notation, which is shown in parentheses in the dock window Search on tab Search Procedures. The approach runway must match the allowed runways for a SID, if used.
ALTERNATES: Alternate airports are optional and are added to the flight plan when reading depending on the option Read trailing Airports as Alternates as described above.

44.5.1. Features not supported

ETD and ETA: Four digit departure and arrival time attached to the airport or waypoint ident are ignored.

WAYPOINT.SPEEDALT: For example BOMBI/N0090A060. Altitude changes at waypoints are not supported and ignored when reading.

44.5.2. Alternates

Example when reading Read trailing Airports as Alternates enabled:

KPWA N0169F190 MUDDE3 ATOKA J25 FUZ J33 CRIED J50 LFK BAYYY3.SJI KHOU KCLL KVCT
KPWA ATOKA J25 FUZ J33 CRIED J50 LFK KHOU KCLL KVCT

KHOU is read as destination, KCLL and KVCT are alternates for both examples.

Example when reading Read trailing Airports as Alternates disabled:

KPWA N0169F190 MUDDE3 ATOKA J25 FUZ J33 CRIED J50 LFK BAYYY3.SJI KHOU KCLL KVCT

Not valid. Error message BAYYY3.SJI not found printed. KVCT is read as destination, KHOU and KCLL are intermediate waypoints.

KPWA ATOKA J25 FUZ J33 CRIED J50 LFK KHOU KCLL KVCT

KVCT is read as destination, KHOU and KCLL are intermediate waypoints.

44.5.3. Speed and Altitude

Cruising ground speed and cruising level not separated by a space.

Speed is prefixed with:

K: Kilometers per hour followed by a four digit value.
N: Knots followed by a four digit value.
M: Mach followed by a three digit value. The mach value is converted to knots ground speed assuming standard atmosphere conditions at the given flight altitude.

Altitude is prefixed with:

F :Flight level in three digits.
S: Metric flight level in three digits of tens of meters.
A: Altitude in hundreds of feet in three digits.
M: Altitude in tens of meter in four digits.

Examples:

N0410F310 410 knots at flight level 310.

M071F320 Mach 0.71 at flight level 320.

K0790M0710 790 kilometers per hour at 7,100 meters.

44.5.4. Coordinates

Coordinates can be supplied in different formats:

Degrees only (7 characters): Two digits and north/south indicator plus three digits and east/west indicator.

51N010E

Degrees and minutes (11 characters): Two digits degrees, two digits for minutes and north/south indicator. Then three digits for degrees, two digits for minutes and east/west indicator.

4010N03822W.

Degrees, minutes and seconds (15 characters): Two digits degrees, two digits for minutes, two digits for seconds and north/south indicator. Then three digits for degrees, two digits for minutes, two digits for seconds and east/west indicator. This format is used by SkyVector for example.

481200N0112842E.

ARINC 424 Code Convention: All full degree waypoints either a part of the navigation database or not.

57N30 (N57 W130) or 5730S (S57 W030).

North Atlantic track points (NAT). Two digits degrees north and two digits degrees west followed by character N.

5010N.

Coordinate waypoint pairs with degrees and minutes as above and prefixed with north/south and east/west indicator.

N4200 W02000 or N4200/W02000.

Garmin GFP format (13 characters) north/south indicator, two digits degrees, three digits for minutes by 10. Then east/west indicator, three digits degrees, three digits minutes by 10. This format is used by the Flight1 GTN 650/750.

N48194W123096

Note

Coordinates in the generated description use the degrees and minutes format, e.g. 4010N03822W. This is done to keep compatibility with other applications. Note that this format is limited to one minute accuracy which is up to 1 NM depending on position. You might see inaccurate positioning when re-reading coordinates.

44.6. Flight Plan Description Examples

Direct connection Frankfurt Main (EDDF) to Fiumicino (LIRF):: EDDF LIRF or EDDF DCT LIRF
VOR to VOR:: EDDF FRD KPT BOA CMP LIRF
Same as above with departure time ( ETD ) and arrival time ( ETA ) which both will be ignored:: EDDF1200 FRD KPT BOA CMP LIRF1300.
Same as above on flight level 310 at 410 knots:: EDDF N0410F310 DCT FRD DCT KPT DCT BOA DCT CMP DCT LIRF
Using Jet airways:: EDDF ASKIK T844 KOVAN UL608 TEDGO UL607 UTABA UM738 NATAG Y740 LORLO M738 AMTEL M727 TAQ LIRF
Same as above on flight level 310 at mach 0.71 with an additional speed and altitude at NATAG which will be ignored:: EDDF M071F310 SID ASKIK T844 KOVAN UL608 TEDGO UL607 UTABA UM738 NATAG/M069F350 Y740 LORLO M738 AMTEL M727 TAQ STAR LIRF
User defined waypoints with degree/minute notation and an alternate airport LIRE :: EDDF N0174F255 4732N00950E 4627N01019E 4450N01103E LIRF LIRE
Flight plan using SID and STAR procedures with transitions:: KPWA RDHK2.HOLLE ATOKA J25 FUZ J33 CRIED J50 LFK OHIO3.LFK KHOU
Flight plan using the generic SID and STAR keywords:: KPWA SID ATOKA J25 FUZ J33 CRIED J50 LFK STAR KHOU
Flight plan using SID and STAR procedures with transitions and two alternate airports:: KPWA N0169F190 MUDDE3 ATOKA J25 FUZ J33 CRIED J50 LFK BAYYY3.SJI KHOU KCLL KVCT
Approach ILS 05R via LMA: EDDK/06 NVO1K NVO Q760 INLAR T853 LMA EDDL/LMA.I05R
Depart from runway 36 using SID TFS3T:: GCLA/36 TFS3T TFS GCTS/TES2.I07-Y
Approach RNAV 04L via BOOKE:: KSFO/01R DCT BAART R464 BITTA KAENA2 PHNL/BOOKE.R04L
Flight plan using NAT track F:: EGLL DOGAL NATF ELSIR KBOS or EGLL DOGAL F ELSIR KBOS
