60. Weather

Little Navmap can display weather as METARs and decoded weather in the information window and tooltips as well as weather symbols on the map.

Weather can be taken from the following sources:

  • FSX or P3D if connected. This also applies to network setups.

  • X-Plane 11 and 12 real time weather from weather files. You have to share files and directories across computers and adjust loading path in the options dialog on page Cache and Files for remote setups.

  • NOAA online weather service

  • VATSIM network online weather service

  • IVAO network online weather service

  • HiFi Simulation Technologies. The short name as shown in Little Navmap added in brackets.

    • Active Sky Next (ASN)

    • AS16

    • Active Sky for Prepar3D v4 (ASP4)

    • Active Sky for Prepar3D v6 (ASP6)

    • Active Sky for X-Plane 11 (ASXP11)

    • Active Sky for X-Plane 12 (ASXP12)

    • Active Sky FS for MSFS (ASFS)

Weather files are accessed or downloaded on demand when an option in menu Show Airport Weather or Weather Menu is selected.

Important

The base path to the simulator has to be correct for Little Navmap to find the X-Plane weather files. Click Reset Paths in the Dialog Load Scenery Library to ensure a correct path.

Furthermore you have to select the right simulator in the Scenery Library Menu. Little Navmap otherwise reads the wrong weather files.

Features like regions of manually created weather for X-Plane are not supported in Little Navmap.

Weather display and information can be selected in the following locations:

  • Options dialog on page Weather: There you define what source is shown in the information window and in the map tooltip. This is based on the airport METAR reports and does not affect anything else besides the information window and the map tooltip.

  • Main menu Weather -> Airport Weather Source: This is for the airport weather icons on the map. Based on METAR of the airport and only affects the weather symbols on the map.

  • Main menu Weather -> Wind source: This source is used for all winds aloft functions: Map display wind grid symbols, map tooltip, flight plan table, elevation profile (hover tooltip), top of descent and top of climb point calculation, fuel planning, arrival time calculation and trip time calculation. Note that this download has nothing to do with the METAR functions above and is fetched from another source (NOAA/NOMADS).

METARs are shown in the airport tooltips and on the tab Airport -> Overview tab. Decoded weather information for all sources is available in the tab Airport -> Weather.

The date and time information of the decoded weather display is highlighted in red if the METAR information is older than six hours.

Note

About X-Plane weather: The program cannot read custom weather situations from X-Plane. If you use custom weather, Little Navmap only has access to the local weather around the aircraft in the Simulator Aircraft window on the Tab Progress. Be aware that Little Navmap might display information from an obsolete or inactive downloaded weather file in this case.

Also, weather and nearest weather in X-Plane might be inaccurate. This is due to interpolation between weather stations.

_images/weather.jpg

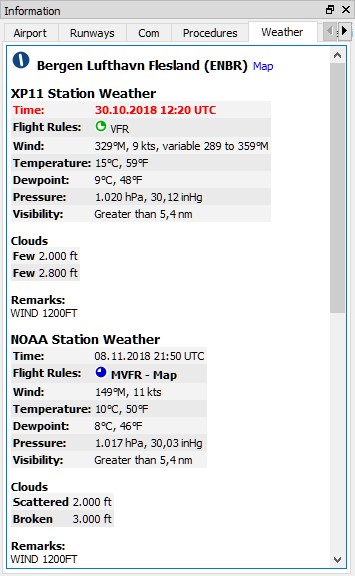

Decoded weather information from X-Plane and NOAA. The weather symbols on the map use NOAA as source (suffix - Map after the flight rules). X-Plane weather is older than six hours and therefore highlighted red.

60.1. Weather Sources

60.1.1. Flight Simulator

Weather information from a flight simulator or the X-Plane weather files falls in one of three categories, depending on the selected airport:

  • Station: The airport has a weather station. This is the most precise weather indication.

  • Nearest: The selected airport has no weather station and the report from the closest existing weather station was fetched. The ident of the closest station as well as distance and elevation are shown in the decoded METAR on the tab Weather. Note that the this weather station is not necessarily an airport.

  • Interpolated:

    • X-Plane, NOAA, VATSIM and IVAO: The weather is interpolated by Little Navmap using the eight nearest stations of the selected airport. The used stations are listed in the airport weather information (Weather). Note that this does not cover cloud layers. Use the nearest airport as reference for clouds.

    • FSX and P3D: The weather is interpolated by the flight simulator using three stations closest to the selected airport. FSX and P3D only provide non-interpolated weather for airports close to the user aircraft. The weather for other airports is always interpolated. The ident of the selected airport is used in the METAR report for this kind of weather report.

The flight simulator weather is updated every 15 seconds to catch manual changes or changes in the weather theme.

Little Navmap watches the X-Plane 11 METAR.rwx and global_winds.grib files as well as the X-Plane 12 Output/real weather directory for changes and applies updates immediately.

60.1.2. Online - NOAA, VATSIM and IVAO

Online weather from both sources is updated every 10 minutes.

60.1.3. Active Sky

All Active Sky programs are recognized automatically on startup for each simulator. The current_wx_snapshot.txt and activeflightplanwx.txt files are loaded and monitored for changes. Weather will be reloaded and updated in the information display if necessary.

You can also select the current_wx_snapshot.txt file manually. In that case the METARs from this file are displayed for all installed flight simulators. The activeflightplanwx.txt will be loaded from the same directory.

Manual file selection can also be useful if a new Active Sky version is not supported by Little Navmap yet.

Departure and destination weather will be displayed if a flight plan is loaded in one of the Active Sky programs. A suffix Destination or Departure will indicate the usage of Active Sky flight plan weather on the tab Weather. This gives Active Sky users the most precise weather indication for departure and destination.

Note that the indication of Departure or Destination depends entirely on the flight plan loaded in Active Sky and not the flight plan in Little Navmap.

60.2. Airport Weather

Little Navmap can show weather symbols for airports having a weather station for all available weather sources. Select sources for display with Airport Weather Source.

Note that airport weather is only displayed for stations and not interpolated. Stations which are not airports are not supported.

Weather is also shown for hidden airports if these provide a weather report.

A suffix - Map is added to the flight rules in the METAR and decoded weather display of the information window as well as in tooltips to indicate which source is shown on the map.

See Airport Weather in the map legend for an explanation of the symbols.

_images/weather_map.jpg

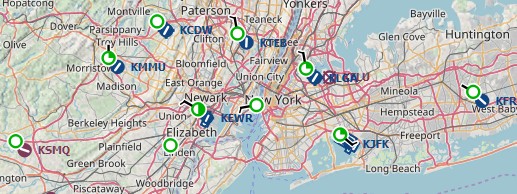

Weather situation around New York. All airports are VFR and low winds.

60.3. Winds Aloft

Little Navmap can download and display winds aloft based on either X-Plane or the National Oceanic and Atmospheric Administration data.

The latter ones are winds aloft forecasts which are updated four times a day and are used by most simulators and weather programs as data source. The wind speed and direction is arranged in an one-degree grid.

Little Navmap can display a wind barb grid for a selected wind layer or at flight plan waypoints. Tooltips at the wind barbs show wind details for several layers at the position.

Hovering the mouse over the elevation profile shows the wind at the flight plan position. See Tooltip Label.

Winds are used to calculate flight time, trip fuel, top of descent and top of climb.

A manual wind setting for cruise altitude can also be used. See Buttons.

See Winds Aloft for an explanation of the wind symbols and options page Weather for more configuration options.

Select wind data source for display with Wind source.

60.3.1. Wind Levels Button Wind Levels Button

Same as Wind levels.

The menu button enables or disables wind aloft display by a wind barb grid at different layers as well as at flight plan waypoints.

The drop down menu has the following items:

  • At Flight Plan Waypoints: Toggles wind barbs with a yellow border at flight plan waypoints on and off. Wind barbs below 4000 ft above mean sea level are omitted. This function is independent of the selection below.

  • No Wind Barbs: Do not show the wind barb grid. Wind data is still downloaded and processed until the source is set to Disabled.

  • Wind at Ground (only NOAA): Show the wind barb grid for winds near ground (about 260 ft). Only available if the NOAA wind source is selected.

  • Wind at Flight Plan Cruise Altitude: Show the wind barb grid for winds at the current flight plan cruise altitude.

  • Wind for Selected Altitude: Enables the slider button below and allows to change the wind barb altitude in 500 feet steps.

60.4. Tooltips

The wind barbs show an optional tooltip with wind direction, speed and wind source if you hover the mouse over them. The same applies to wind barbs at flight plan waypoints with option At Flight Plan Waypoints enabled.

Direction is magnetic per default but can be changed in the options dialog on page Units. These tooltips show the wind for all layers with flight plan cruise altitude, selected wind barb altitude and manual layer altitude highlighted.

_images/wind.jpg

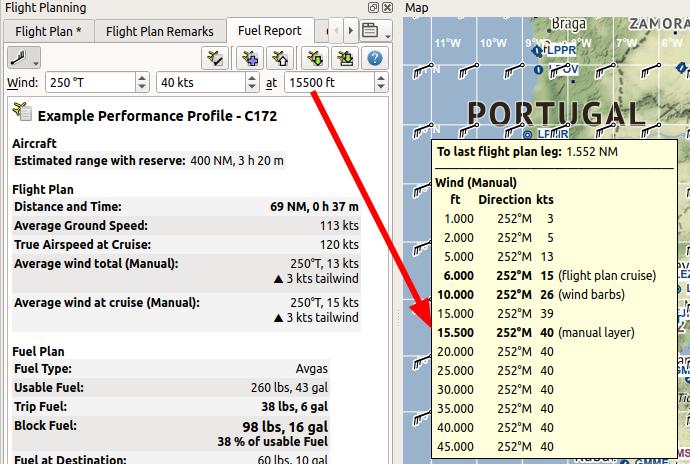

Winds aloft set manually, display with tooltip at wind barbs in grid and wind drop down menu. Indicators in tooltip show flight plan cruise altitude, wind barb altitude and manual layer altitude. Notice the decreasing wind speed as interpolated from manual layer altitude to ground.

_images/wind_route.jpg

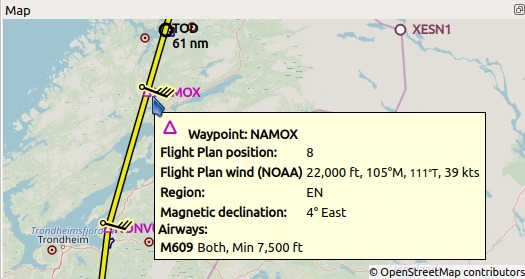

Wind barbs shown at flight plan waypoints and wind data in tooltip.
