81. Tips and Tricks

81.1. Show all Navaid Ranges of a Flight Plan

Select all legs in the flight plan table, then right-click on any leg and select Show Navaid Range . This will place a range ring around every radio navaid in the flight plan.

See also Add Navaid Range Ring.

Remove the range rings by right clicking onto the center and select Remove Range Ring from the context menu.

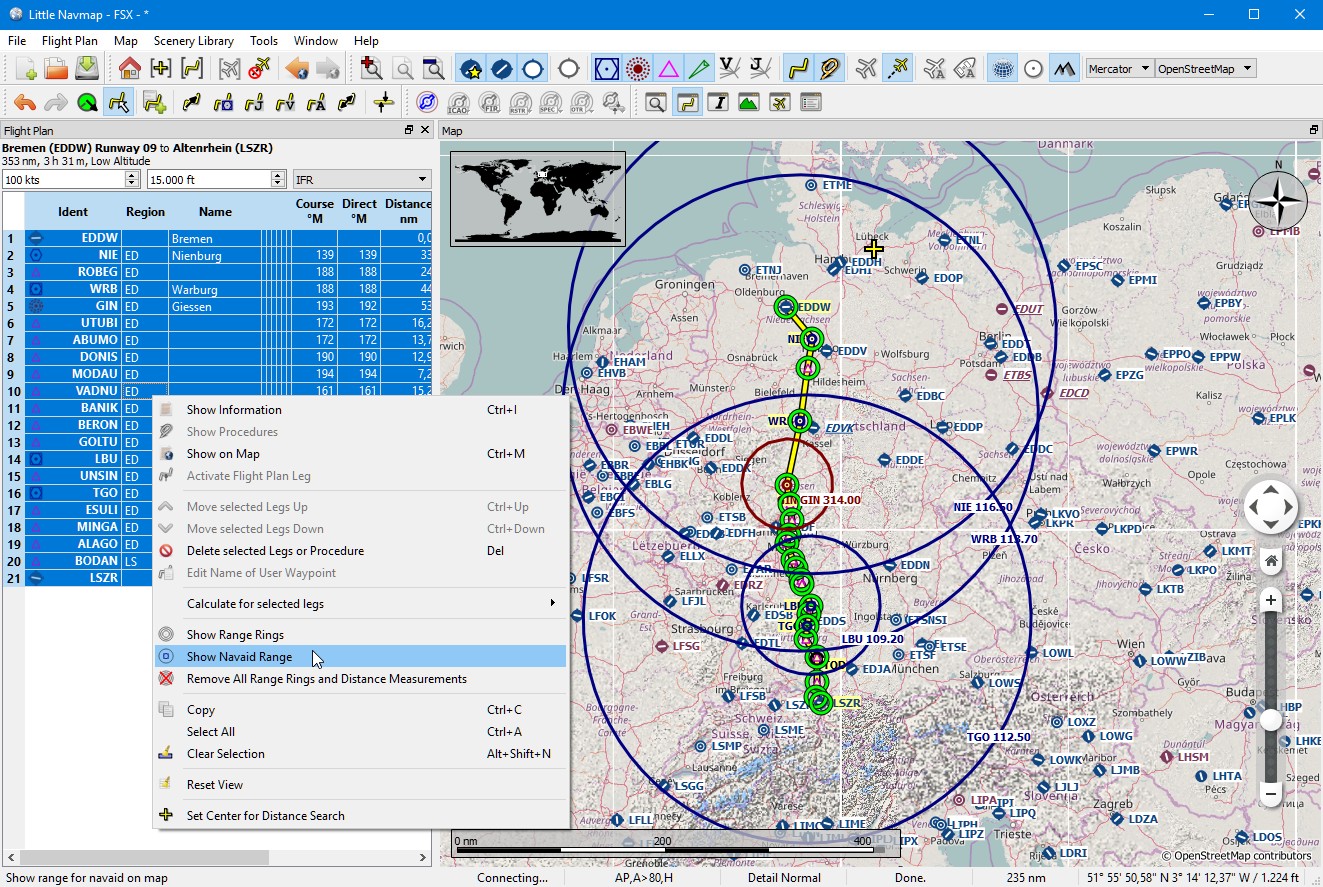

Radio navaid range rings along a flight plan. Click image to enlarge.

81.2. Use the measurement lines to get a VOR Radial Intersection

Measurement lines can start at airports or navaids where they use the magnetic declination if available. You can use them to find an airport by radial and distance if you like to navigate the old fashioned way.

See also Measure Distance from here.

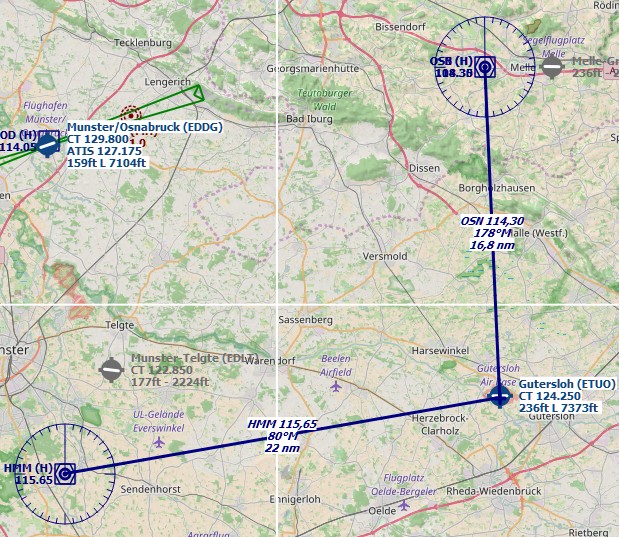

Example that gets radial and distance from two VORs for ETUO. Measurement lines can also start at NDBs or waypoints. Note the suffix °M which indicates magnetic course. Click image to enlarge.

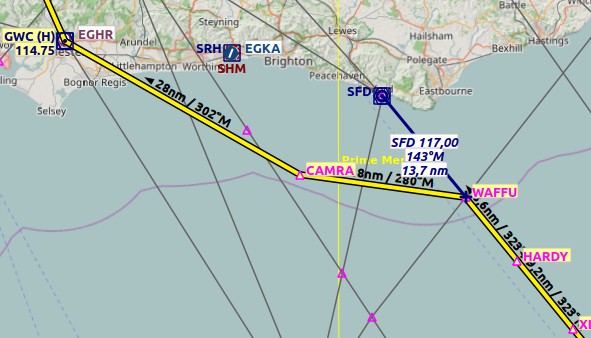

The same can be used when flying airways without GPS. In the example below fly 323 degrees magnetic to VOR SFD (radial 143). You are at WAFFU when the DME shows 13.7 NM. Then turn left to 280°M until you intercept 302° to GWC. Click image to enlarge.

81.3. Search for Add-On Airports

You can use the scenery path to look for add-on airports of a certain developer. Click on one of the add-on airports and copy the relevant part of the path from the information window. Insert this path fragment into the Scenery Path input field in the airports tab of the search dock window.

See also Text filters.

Select all in the result table to get all airports highlighted on the map. Click image to enlarge.

81.4. Use the Search Function to plan a Round the World Trip

The spatial search function is useful to plan a round the world tour. Assume you’d like to go east:

1. Go to the dock window Search, right-click into the result table and select Reset Search to remove all search criteria that may affect the query.

2. Set your departure airport.

3. Right-click on your departure airport in the search or on the map and select Set Center for Distance Search . This is the center point for the spatial search.

4. Add any additional criteria in the search like lighted runways, procedures, fuel, minimum runway length and more.

5. Click the checkbox before Distance, adjust the minimum and maximum distance and set direction to East.

6. Select all in the result table to see the airports on the map.

7. Choose your next destination airport.

8. Add as destination.

9. Calculate plan.

10. Fly.

11. Back to 2. until you are done around the world.

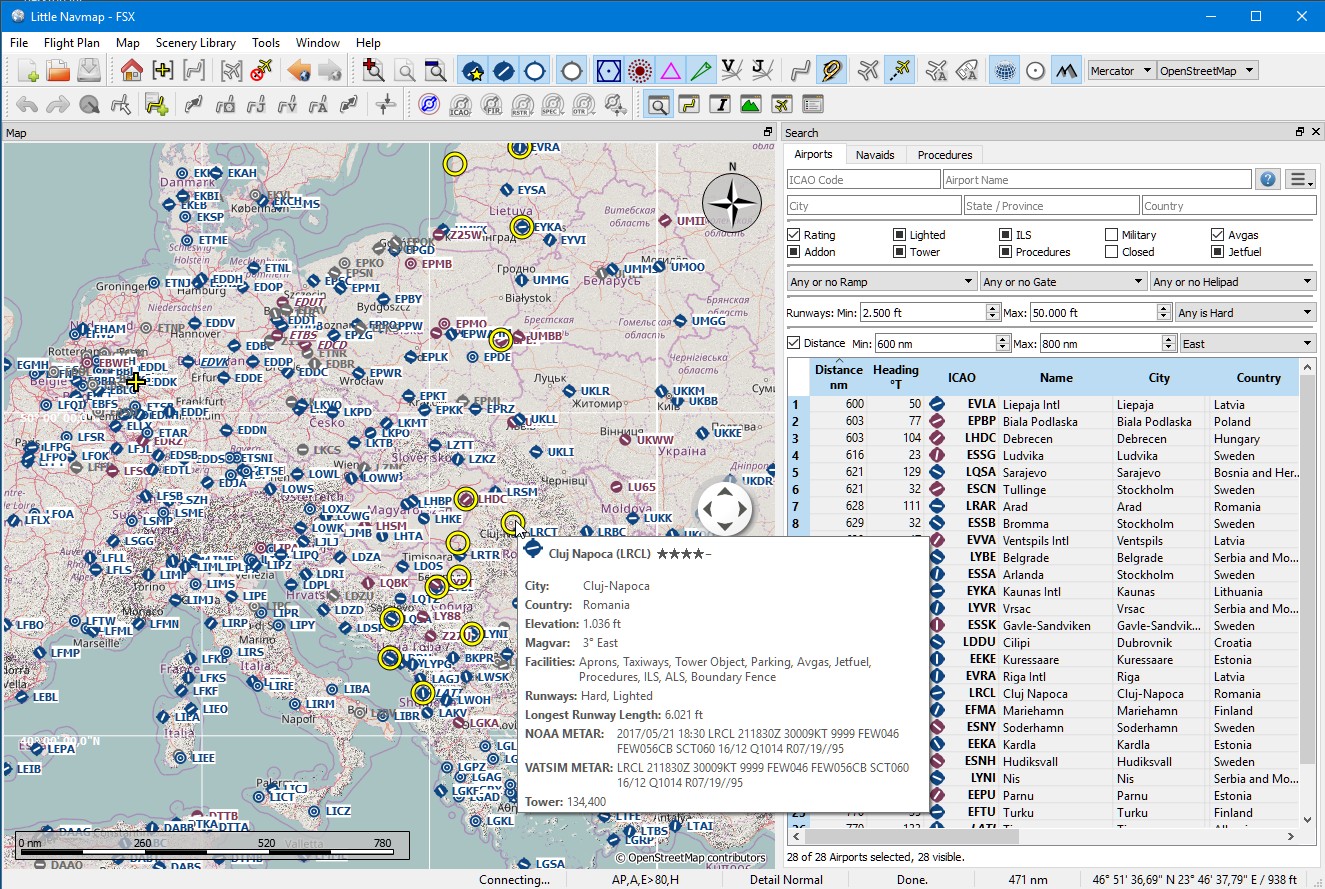

The image above shows a query result for airports in the east. Note that the black/yellow highlight circles have tooltips too no matter if the airport is visible or not. Click image to enlarge.
